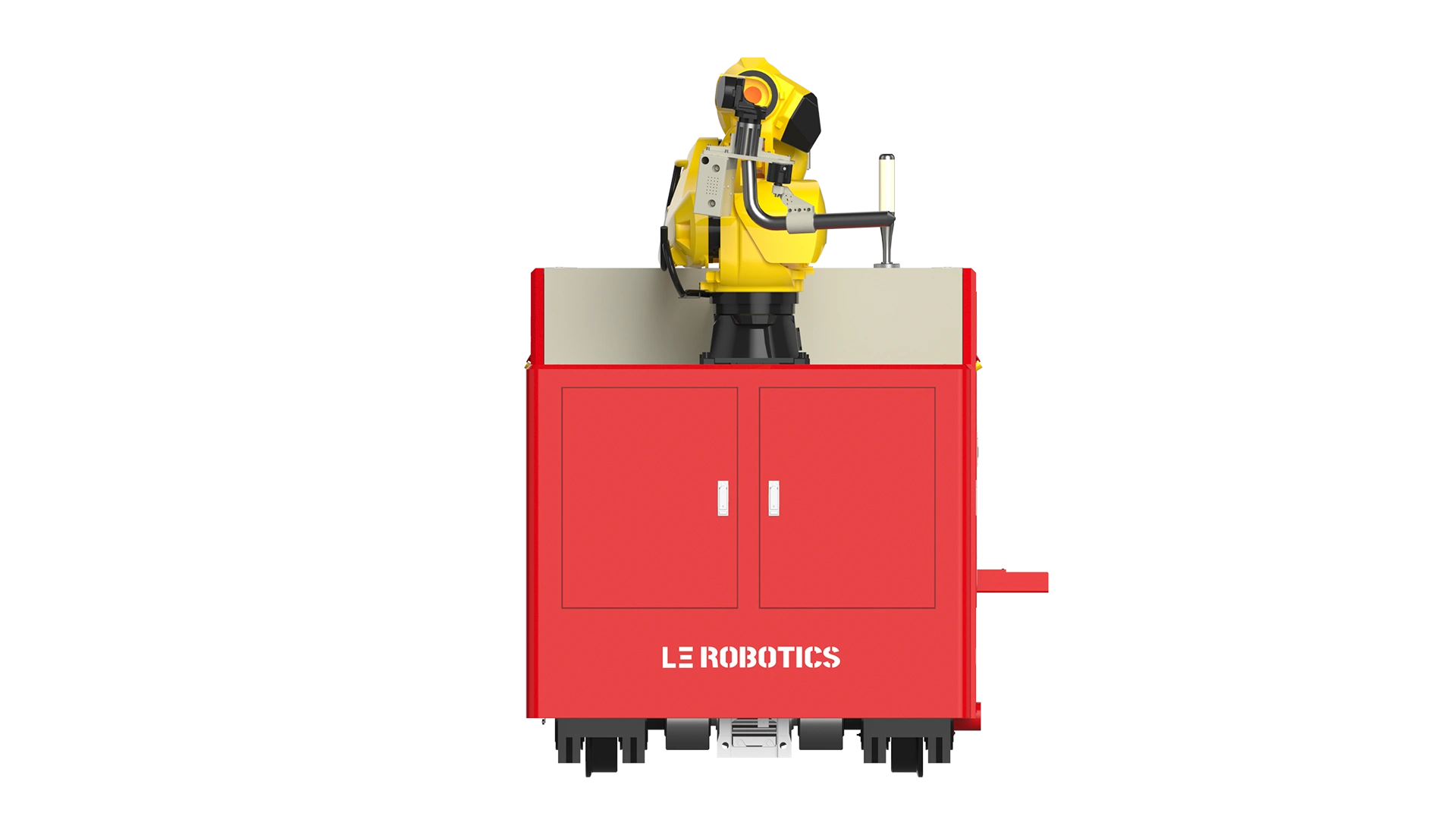

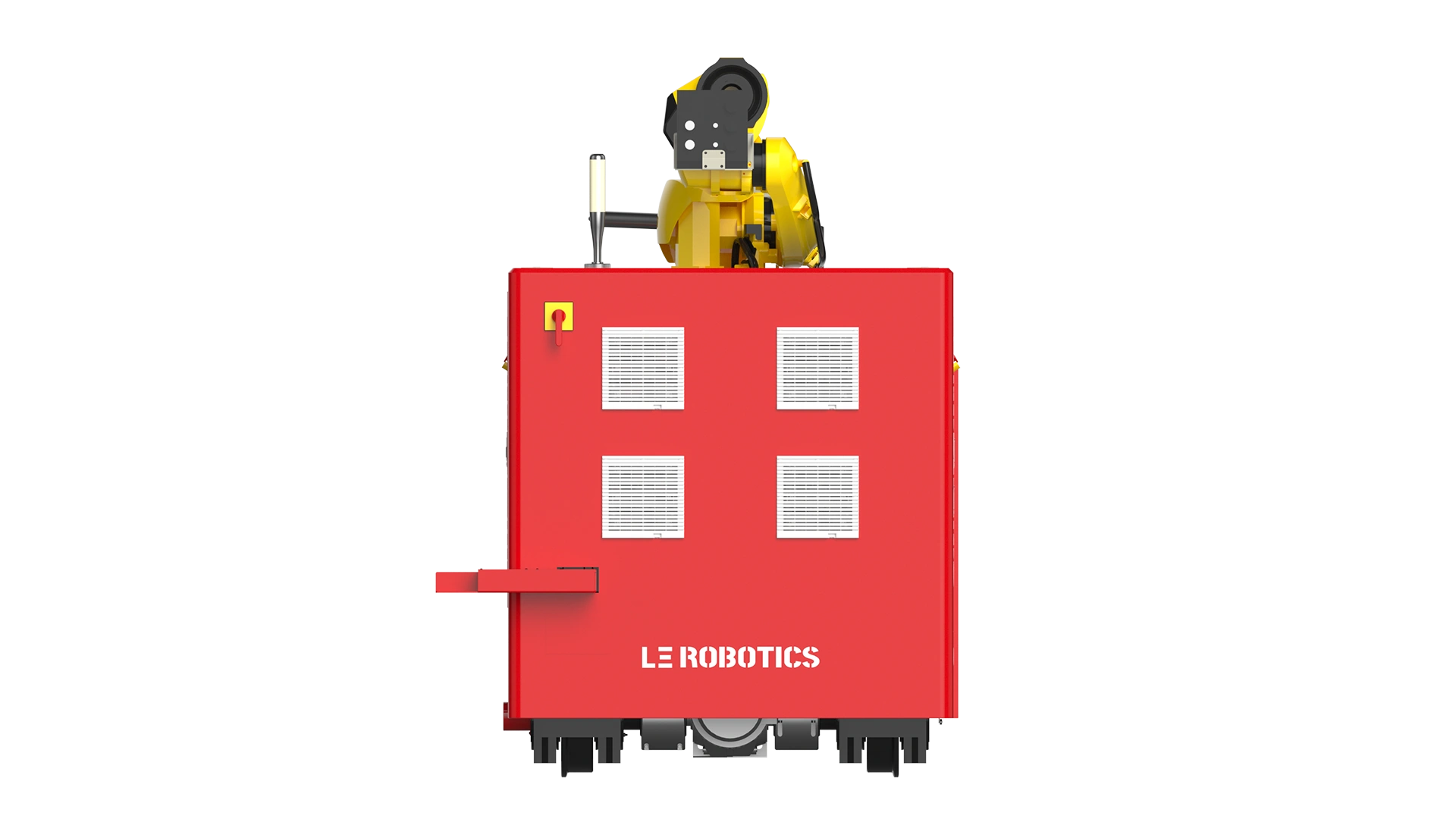

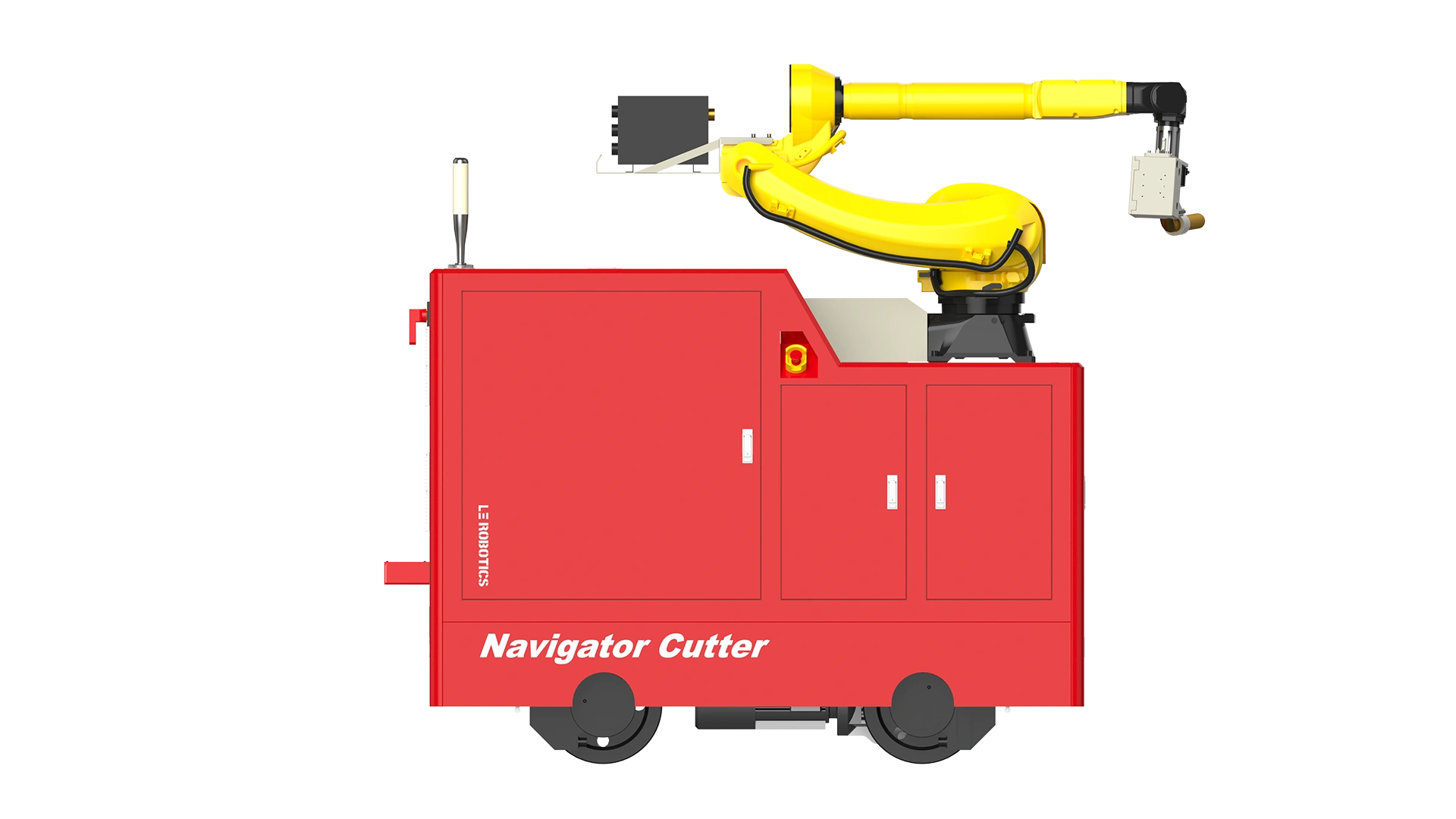

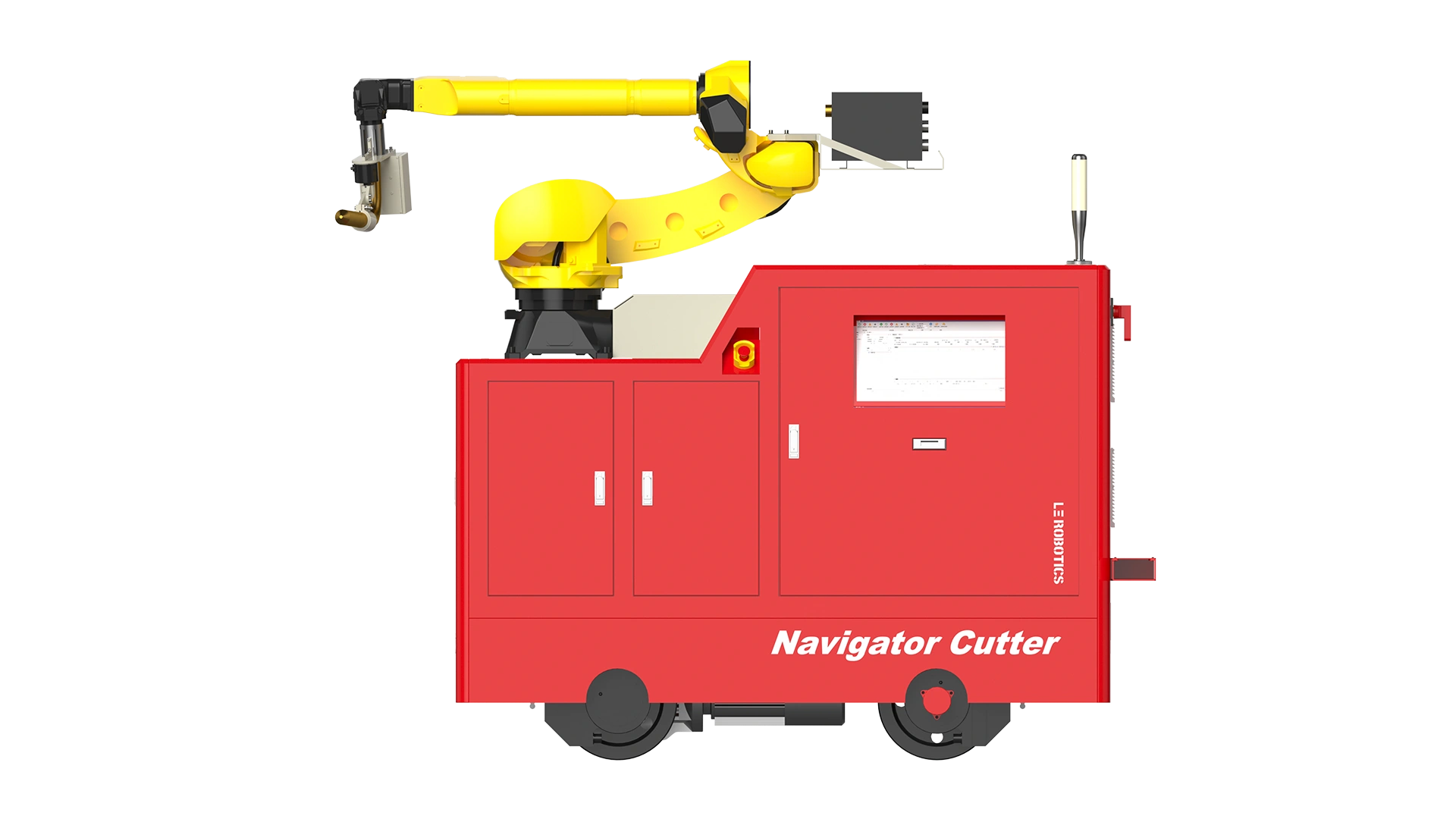

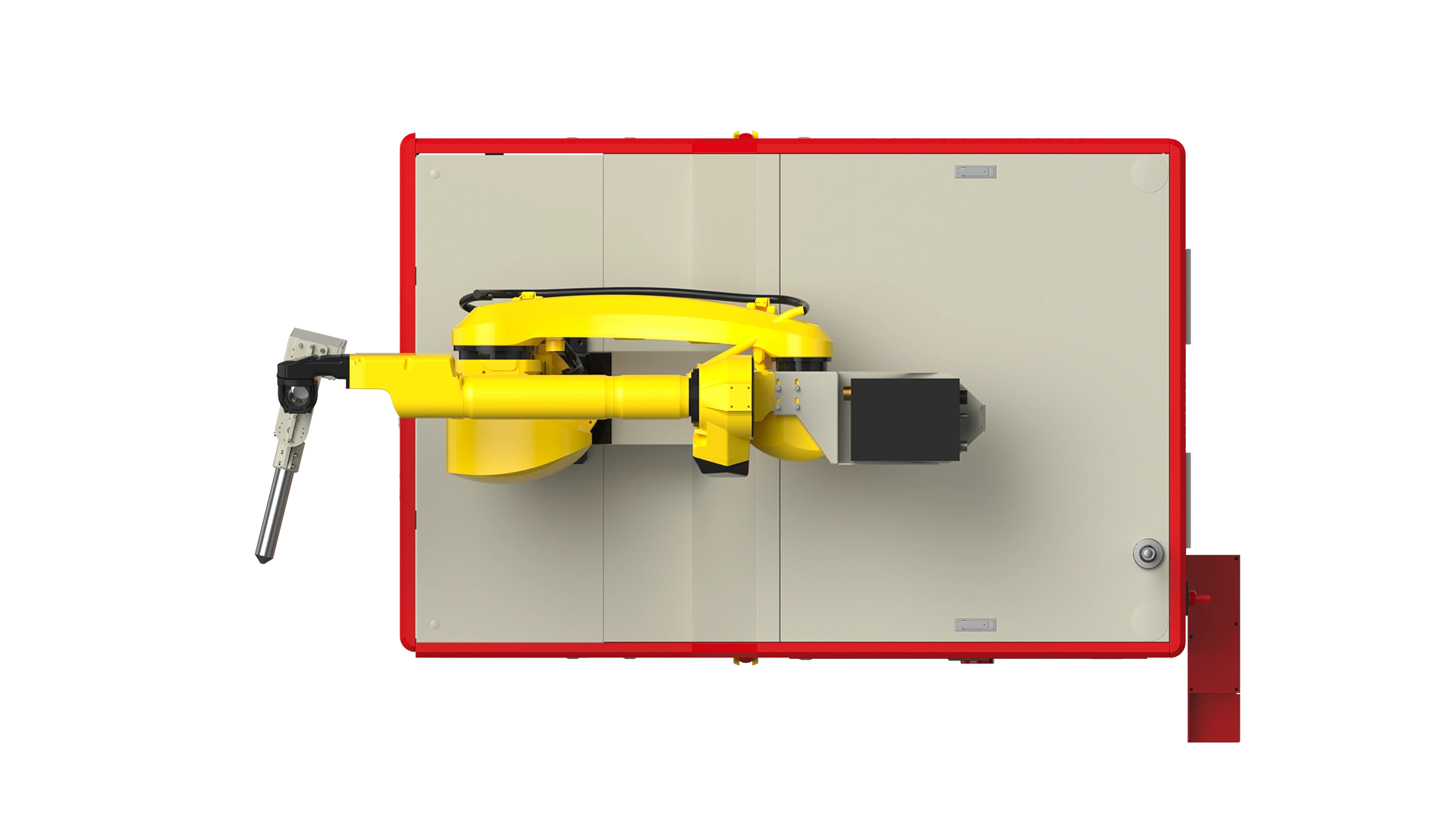

The CutMaster Pro is equipped with a wheel pair drive system integrated into its body, automatically navigating tracks designed specifically to precisely cut large steel components. It utilizes 3D vision technology for programming-free and teaching-free operations, enabling rapid positioning and acquisition of workpiece models. The multifunctional algorithm autonomously plans and determines the cutting path. Moreover, through a mobile app, users can quickly issue dispatch tasks remotely, facilitating collaborative operations between multiple CutMaster Pro units, thus meeting the dynamic production needs of users.
60KVA
Three-phase five-wire system 3x380V±10%/50Hz
Cable drag chain power supply
2800kg
2600mm×1400mm×2150mm
≤0.5mm
≤0.5mm
2000Frames/Second
/
Determined by the track length

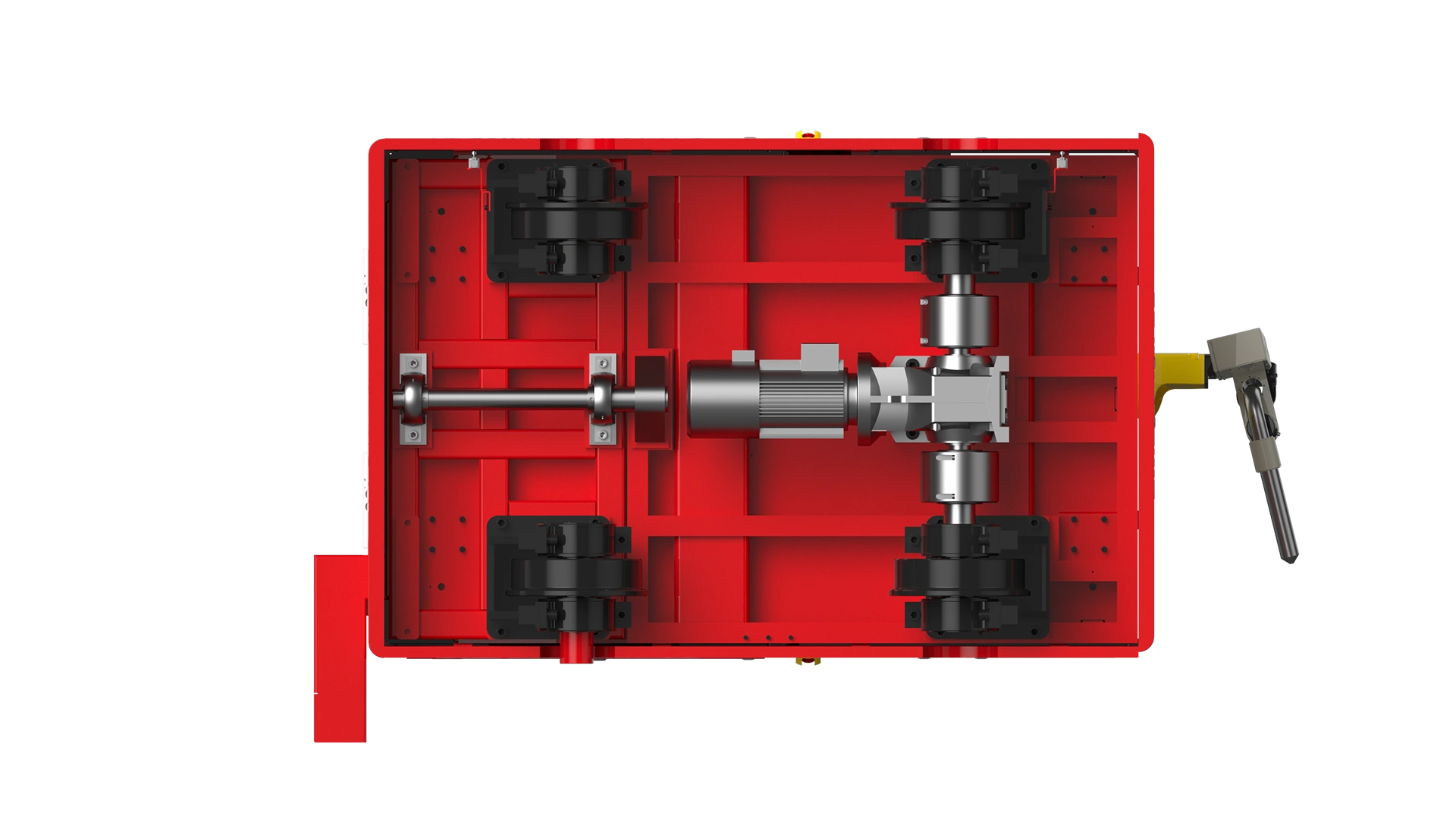

Track-wheeled
Wireless remote control
1km/h
1831mm (Slight Differences in Selection)
0°C to +45°C (operational); -20°C to +60°C (transport and storage)
≤90% RH (non-condensing)
Workpieces can be placed at will with no need for fixture-based positioning.
Automatically moves along tracks to carry out multi-station task commands.
Independently scans workpiece models to autonomously plan and determine cutting paths.
