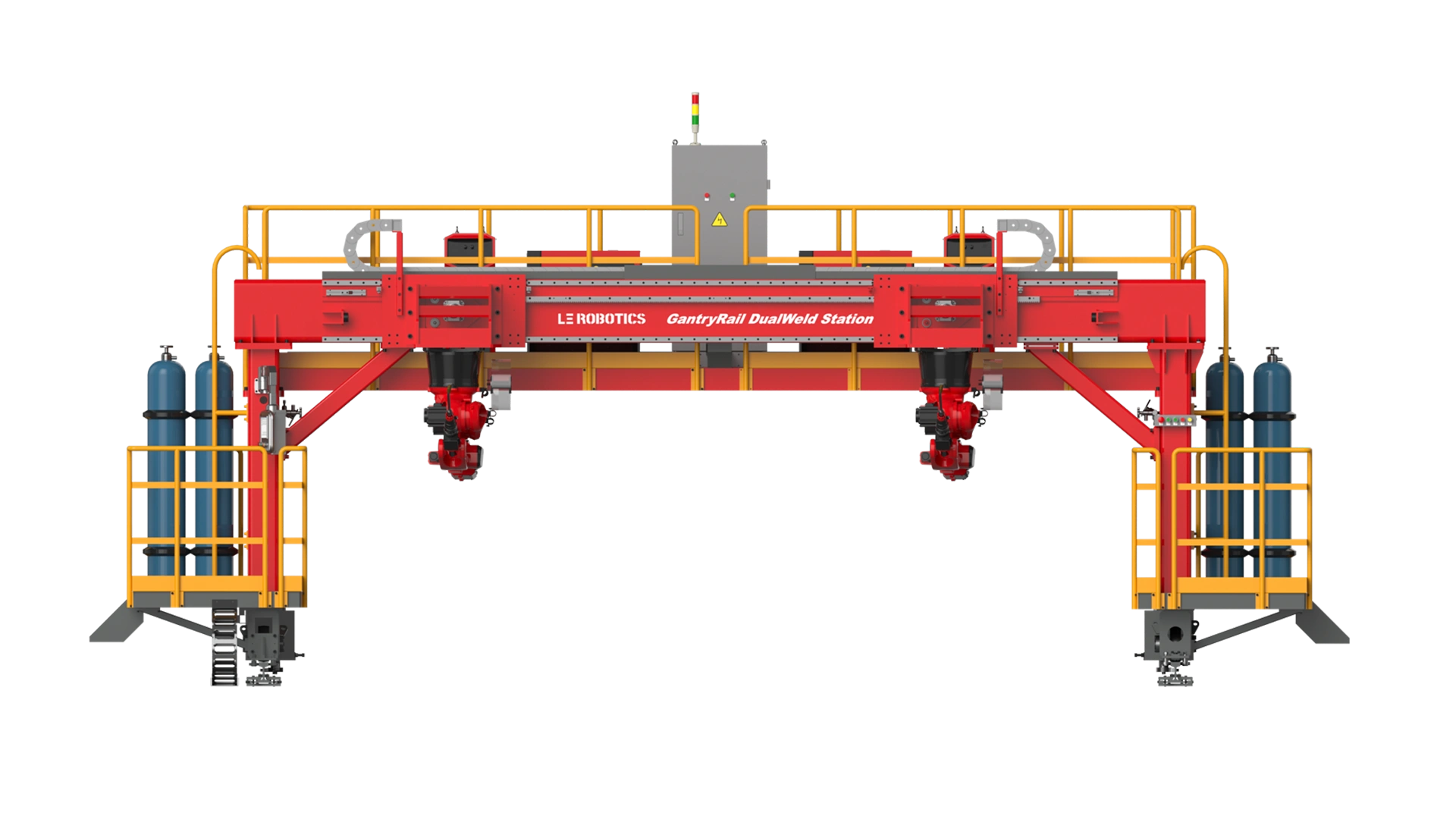

Suitable for welding long workpieces with larger cross-sections, and also capable of handling wider work-pieces, such as U-shaped rib beams and bridge girders.
1.Depending on the different conditions of the workpiece, there are multiple degrees of freedom availablefor selection:
2.Multiple external axes provide a larger motion space for the robot;
3.Dual robot configuration increases production efficiency and reduces welding deformation of the work-piece, effectively ensuring the welding quality;
4.To improve economic efficiency indicators, this series of products generally opts for dual robot configura-tion.
Content | Main Technical Parameters and Range | Note | |||
---|---|---|---|---|---|
8 Axes | 9 Axes | 7 Axes + 7 Axes+ 1 SharedRail Axis | 8 Axes + 8 Axes+ 1 SharedRail Axis | ||
Robot ConfigurationQuantity | Single Robot | Single Robot | Tandem Robots | Tandem Robots | Determined by customerrequirements |
Overall Machine Power | 34kw | 37kw | 55kw | 61kw | |
Maximum EndEffector Load | 12kg | 12kg | |||
Operational PowerSupply | Three-Phase Five-Wire System 3x380V+10950Hz |
Content | Main Technical Parameters and Range | Note | |||
---|---|---|---|---|---|
8 Axes | 9 Axes | 7 Axes + 7 Axes+ 1 SharedRail Axis | 8 Axes + 8 Axes+ 1 SharedRail Axis | ||
Visual Accuracy | ≤0.5mm | ||||
Scanning Frame Rate | 2000Frames/Second |
Content | Main Technical Parameters and Range | Note | |||
---|---|---|---|---|---|
8 Axes | 9 Axes | 7 Axes + 7 Axes+ 1 SharedRail Axis | 8 Axes + 8 Axes+ 1 SharedRail Axis | ||
Robot AmmExtension Range | R=1465mm | Varies with the robotmodelselected | |||
Steel Rail Length | ≤30m | Determined by customerrequirements | |||
Steel Rail Gauge | ≤6m | Determined by customerrequirements | |||
Gantry Beam Height | Desiqned according to the non-standard height of the customer's workpiece | ||||
Track X-AxisMovement Speed | ≥20m/min | Determined by design | |||
Cantilever Y-AxisMovement Speed | ≥12m/min | Y-Axis travel designed basedon the workpiece condition | |||
Column Z-AxisMovement Speed | / | ≥8m/min | / | ≥8m/min | Z-Axis travel designed basedon the workpiece condition |
Content | Main Technical Parameters and Range | 备注 | |||
---|---|---|---|---|---|
8 Axes | 9 Axes | 7 Axes + 7 Axes+ 1 SharedRail Axis | 8 Axes + 8 Axes+ 1 SharedRail Axis | ||
Ambient Temperature | 0'C to +45°C(Operating);-20°C to +60°C (Transport and Storage) | ||||
Relative Humidity | ≤90% RH (Non-Condensing) |
