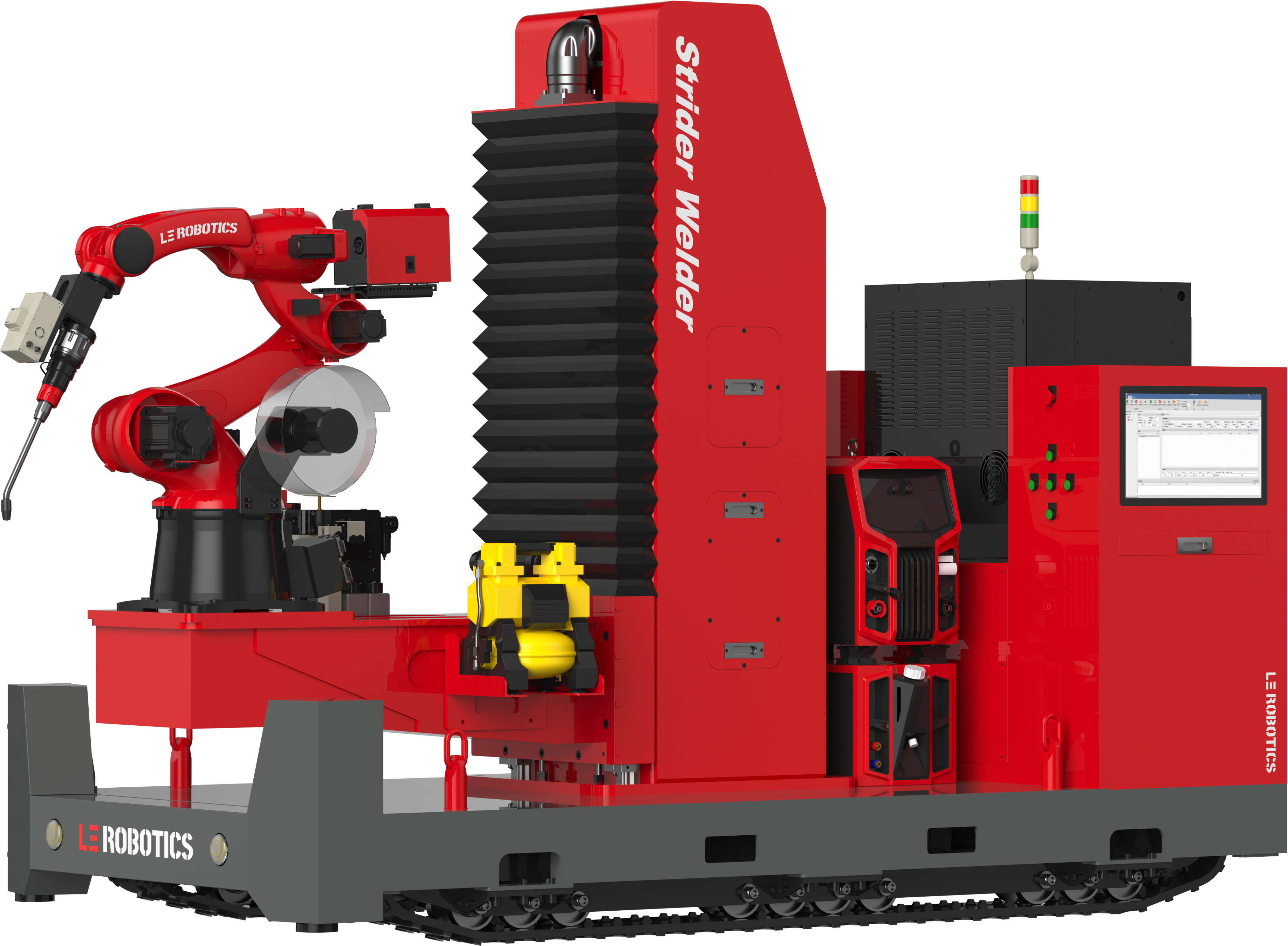

Targeting welding operation limitations in outdoor and complex terrain scenarios (such as heavy - industry thick - plate welding and field pipeline construction), it adopts a crawler chassis paired with the Loyalty AI Welding System, achieving programming - free and teaching - free welding. It can stably complete welding operations in the face of uneven terrain and heavy workpiece loads, freeing outdoor facility construction from environmental constraints.
Loyalty AI Welding System
Programming-free and Teaching-free
One-click Weld Seam Extraction
Automatic Calibration
Intelligent Arc Tracking
Reverse Modeling without Drawings
3D Drawing Import
Digital Twin
Automatic Recognition of Common - Shaped Workpieces
Multi - Layer and Multi - Pass Welding Process
Offline Simulation Functionality
RX Welding Process
| Category | Item | Parameter |
| Basic Parameters | Total Power | 37.5KVA |
| Operating Power Supply | Three-Phase Five-Wire System 3x380 V±10%/50 Hz | |
| Operating Power Supply Mode | Quick-Connect Power Supply | |
| Equipment Weight | 2050 kg(Slight Differences in Selection) | |
| Overall Dimensions (L×W×H) | 3400 mm×1700mmx2000 mm | |
| Vision Performance | Vision Accuracy | ≤0.5 mm |
| Scanning Frame Rate | 2000 Frames/Second | |
| Standard Vision (Equipped) | RX01 | |
| Battery Performace | Battery Voltage | 48 V |
| Battery Capacity | 73ah | |
| Travel Power Supply | DC48 V | |
| Motion Performance | Robot Arm Reach | 2010 mm(Slight Differences in Selection) |
| Traveling Drive | Track-Wheeled | |
| Control Method | Wireless Remote Control | |
| Travel Speed | 1km/h | |
| Lift Stroke | 700 mm（Optional Configurations） | |
| Application Environment | Ambient Temperature | 0°℃ to +45°℃ (Operating); -20°℃ to +60°℃ (Transport and Storage) |
| Relative Humidity | ≤90％RH(No Condensation ) |
