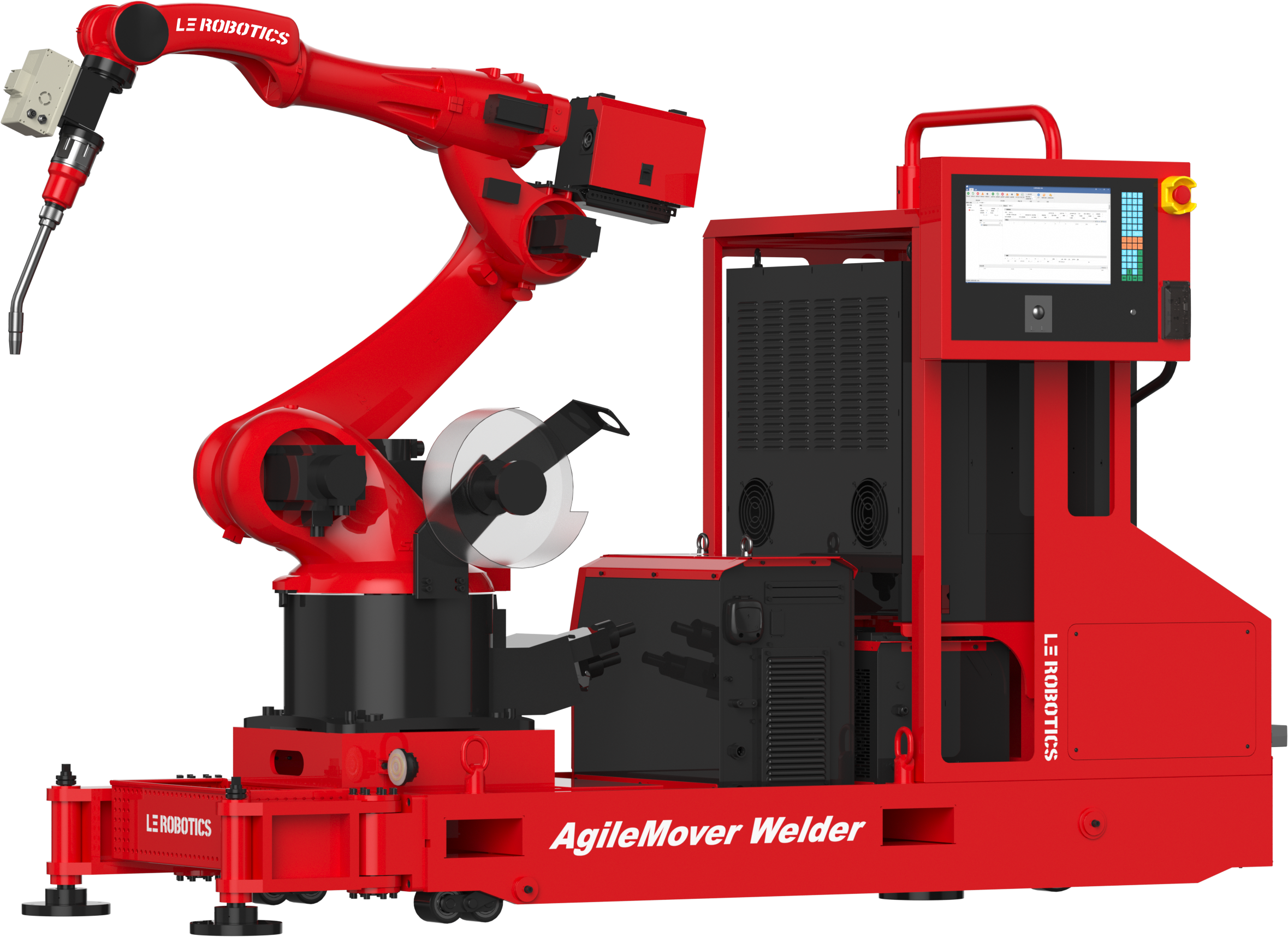

Focusing on narrow-space welding (small components/confined areas), this industrial robot offers high cost-effectiveness: Three-Wheel wireless remote control for flexible movement; Loyalty AI Welding System enables fixture-free, precise welding of small components to solve space challenges.
Loyalty AI Welding System
Programming-free and Teaching-free
One-click Weld Seam Extraction
Automatic Calibration
Intelligent Arc Tracking
Reverse Modeling without Drawings
3D Drawing Import
Digital Twin
Automatic Recognition of Common - Shaped Workpieces
Multi - Layer and Multi - Pass Welding Process
Offline Simulation Functionality
RX Welding Process
| Category | Project | Product Parameters |
| Basic Parameters | Total Power | 30KVA |
| Operational Power Supply | Three-phase five-wire system 3x380V±10%/50Hz | |
| Power Supply Method | Quick-connect power supply | |
| Equipment Weight | 1500kg | |
| Dimensions(L×W×H) | 2500mm×900mmx1800mm | |
| Visual Performance | Visual Accuracy | ≤0.5mm |
| Scan Frame Rate | 2000 frames/second | |
| Standard Vision | RX01 | |
| Mobility Performance | Battery Voltage | 48V |
| Battery Capacity | 32ah | |
| Travel Power Supply | DC48V | |
| Mobility Performance | Robot Arm Range | 2010mm |
| Type of Drive | Three-wheel drive | |
| Control Method | Wireless remote control | |
| Travel Speed | 2.5km/h | |
| Application Environment | Ambient Temperature | 0°C to +45°C (operational); -20°C to +60°C (transport and storage) |
| Relative Humidity | ≤90% RH (non-condensing) |
| Category | Item | Parameter |
| Basic Parameters | Total Power | 30KVA |
| Operating Power Supply | Three-Phase Five-Wire System 3x380 V±10%/50 Hz | |
| Operating Power Supply Mode | Quick-Connect Power Supply | |
| Equipment Weight | 1500 kg(Slight Differences in Selection) | |
| Overall Dimensions (L×W×H) | 2500 mm×900mmx1800 mm | |
| Vision Performance | Vision Accuracy | ≤ 0.5 mm |
| Scanning Frame Rate | 2000 Frames/Second | |
| Standard Vision (Equipped) | RX01 | |
| Battery Performance | Battery Voltage | 48 V |
| Battery Capacity | 32ah | |
| Travel Power Supply | DC48 V | |
| Motion Performance | Robot Arm Reach | 2010 mm(Slight Differences in Selection) |
| Travel Drive | Three-Wheel Drive | |
| Control Method | Wireless Remote Control | |
| Travel Speed | 2.5km/h | |
| Application Environment | Ambient Temperature | 0°℃ to +45°℃ (Operating); -20°℃ to +60°℃ (Transport and Storage) |
| Relative Humidity | ≤90％RH(No Condensation) |
