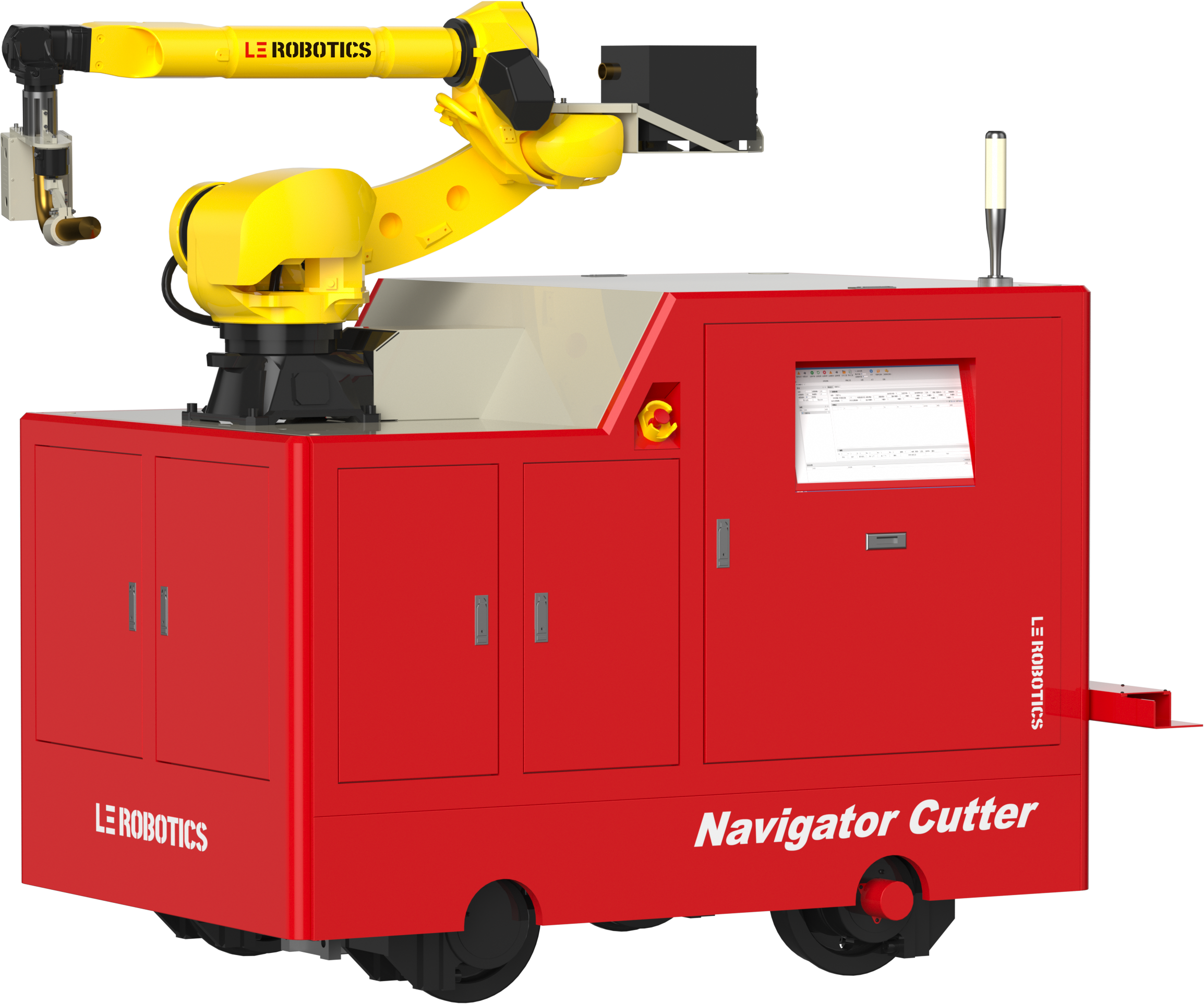

Navigator Cutter

Targeting large-scale steel component cutting, it is equipped with the Loyalty AI Cutting System. Supporting visual calibration and deformation compensation, it has functions like bevel editing/nesting and secondary blanking, enabling precise cutting of bent pipes, heads, branch pipes, conical pipes, and any curved surfaces. It travels automatically along tracks, adapting to multi-station tasks. The mobile APP allows remote scheduling, enabling multi-robot collaboration to meet dynamic production demands.


Loyalty AI Welding And Cutting System
  • Vision Calibration

  • Deformation Compensation

  • Groove Editing

  • Groove Layout

  • Secondary Cutting

  • Bend Cutting

  • Head Cutting

  • Fork Pipe Cutting

  • Cone Tube Cutting

  • Arbitrary Surface Cutting


Navigator Cutter
CategoryProjectProduct   Parameters
Basic ParametersTotal Power60KVA
Operational   Power SupplyThree-phase   five-wire system 3x380V±10%/50Hz
Power Supply MethodCable drag chain power supply
Equipment Weight2800kg
Dimensions(L×W×H)2600mmx1400mmx2150mm
Visual PerformanceVisual Accuracy≤0.5mm
Scan Frame Rate2000 frames/second
Standard VisionRX01
Mobility PerformanceRobot Arm Range1831mm
Maximum range of motionDetermined by the   track length
Type of DriveTrack-wheeled
Control MethodWireless   remote control
Travel Speed1km/h
Application EnvironmentAmbient   Temperature0°C to +45°C   (operational); -20°C to +60°C (transport and storage)
Relative Humidity≤90% RH   (non-condensing)
